Welding Helmets

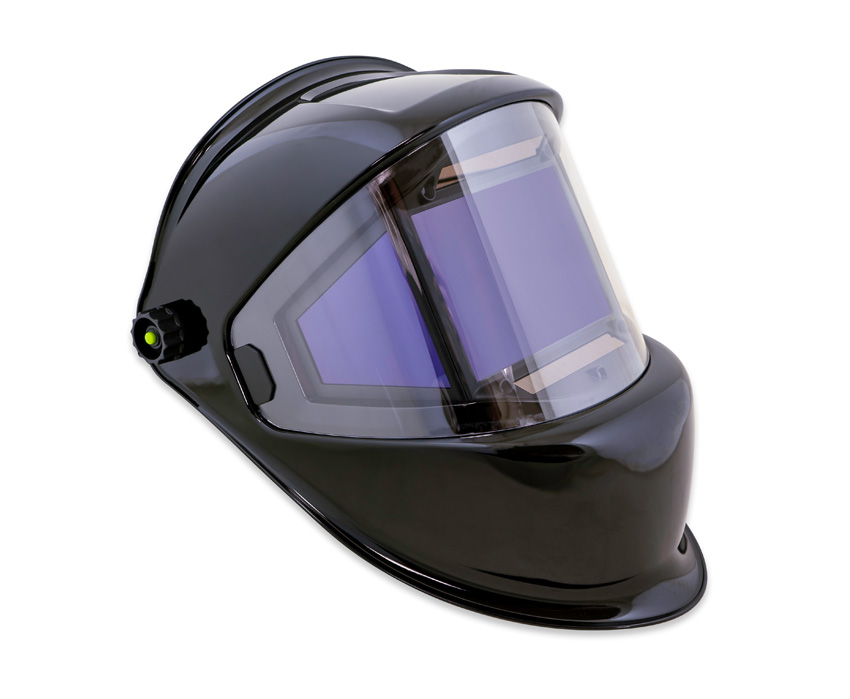

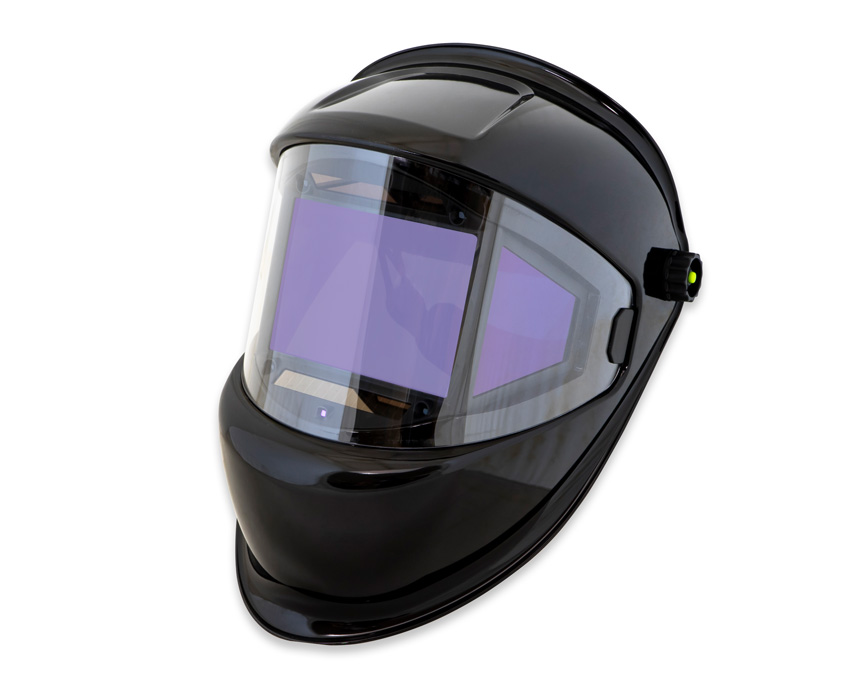

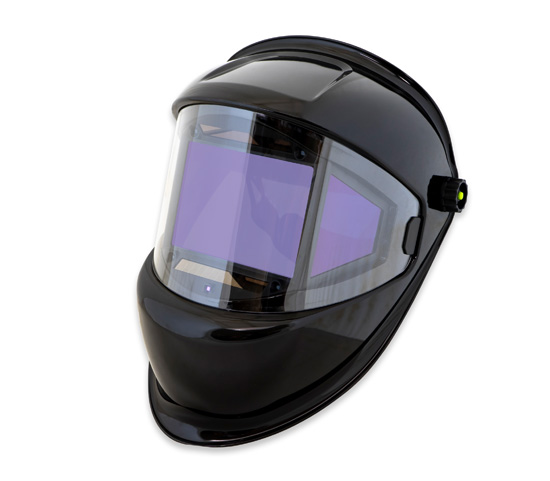

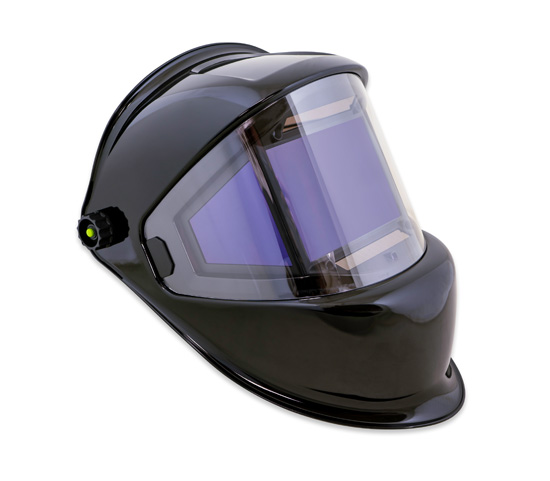

Digital Panoramic 180 View Solar Powered Auto Darkening Welding Helmet - True Color (Black)

Model WH180AD-BK

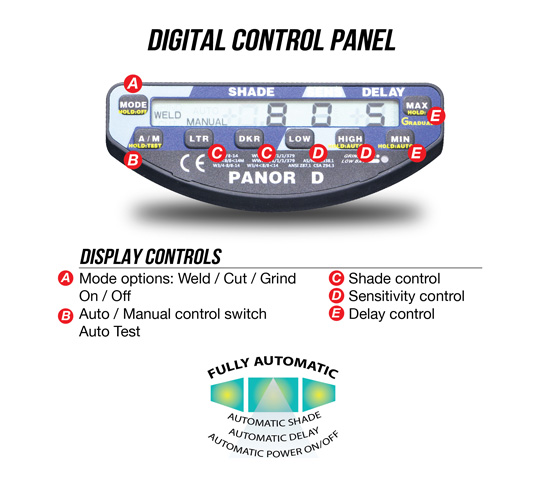

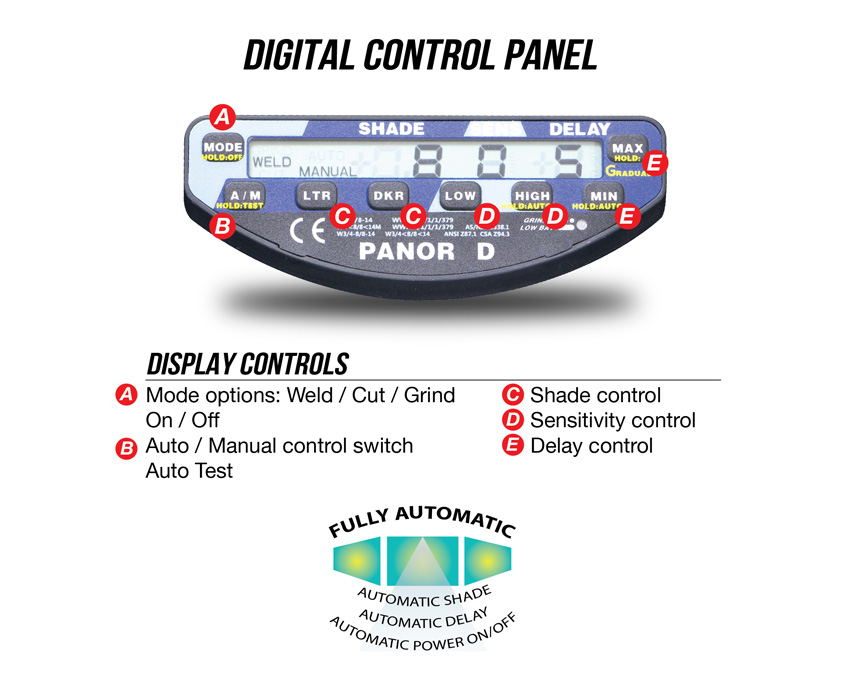

  • Digital control panel. Fully Automatic shade, delay and sensitivity settings.
  • Highest Optical Clarity: 1/1/1/1
  • Better arc capture with 5 sensors.
  • Fully adjustable headgear.
  • Welding, cutting and grinding mode.
  • Grind: Protection against flying particles (EN175B)

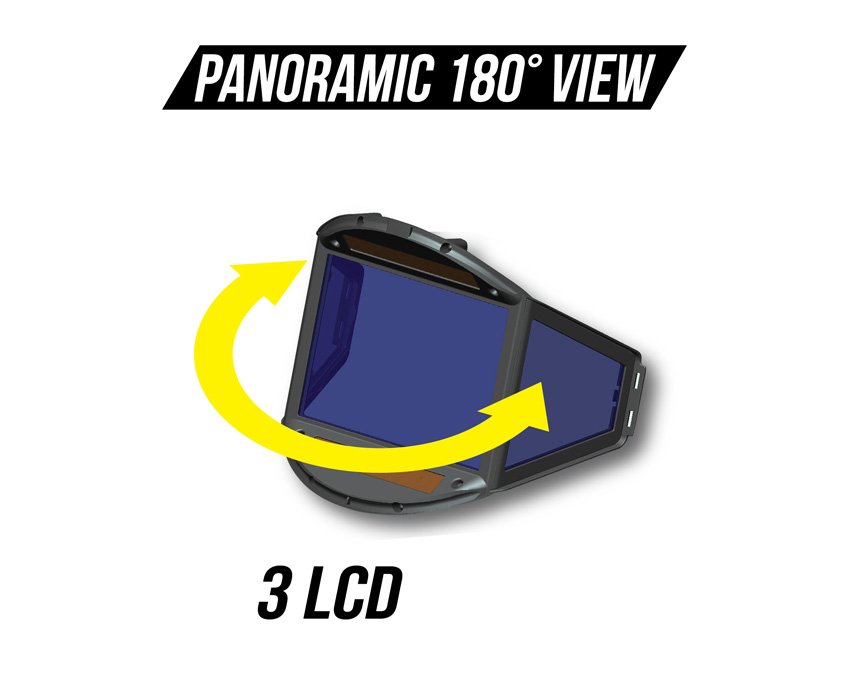

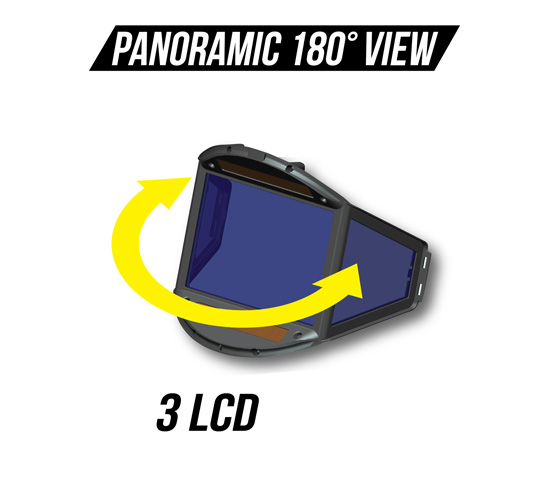

  • Extra large viewing area and True Color Technology: Allows a color realistic perception
  • Certification: CE ANSI AS/NZS

View Brochure

WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Side Window:

  • Light State: DIN3
  • Dark State: DIN 10
  • Viewing Area: 2(pcs)x80(Top)/35(Bottom)x68(Height) mm; 2(pcs)x3.15" (Top)/1.38" (Bottom) x 2.68" (Height)

    Main Window:

  • Light State: DIN3
  • Dark State: DIN4-8/8-14
  • Viewing Area: 115x85 mm (4.53" x 3.35")
  • Switching Time: 0.04ms
  • Delay time: 0.06S~1.2S Automatic
  • Sensors: 5
  • Optical Class: 1/1/1/1
  • TIG Capability: >2A
  • Power Supply: Replaceable Li Mn & Solar Combination
  • UV & IR protection: Up to shade 16

Included:
-1 Helmet
-2 Front cover lens
-1 Inner cover lens kit
-Instruction manual
