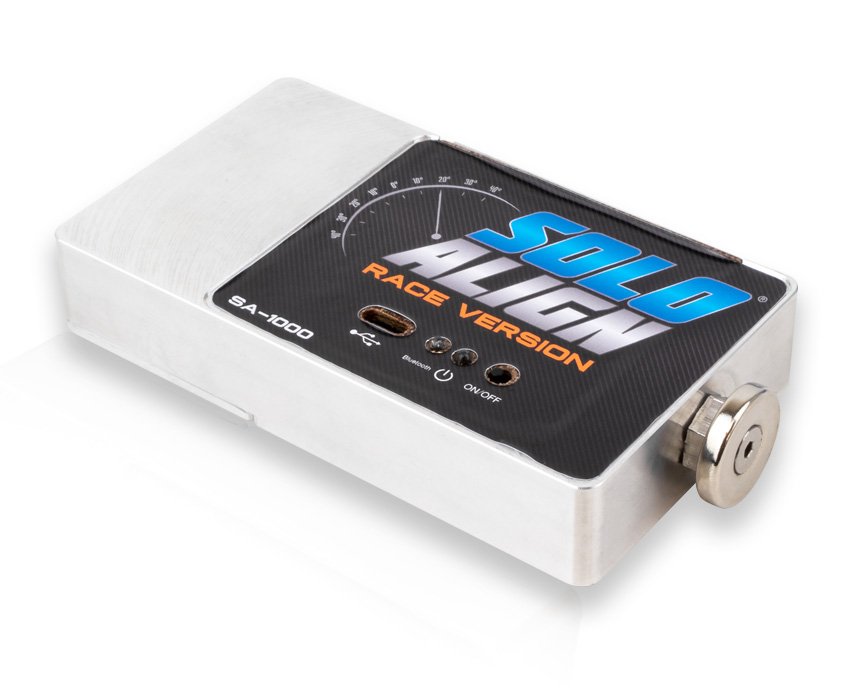

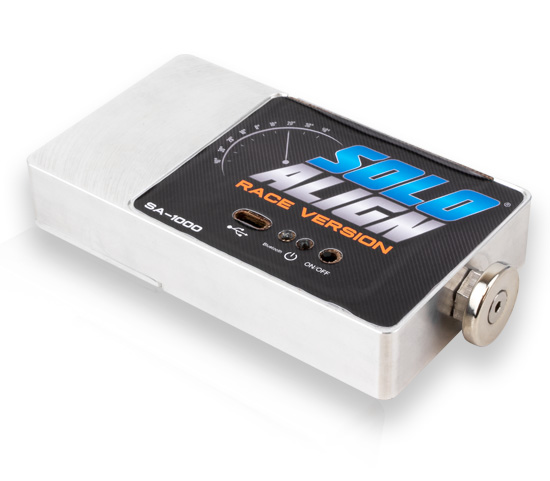

Solo Align Caster Camber Angle Sensor

Solo Align Caster Camber Angle Sensor

Model SA-1000

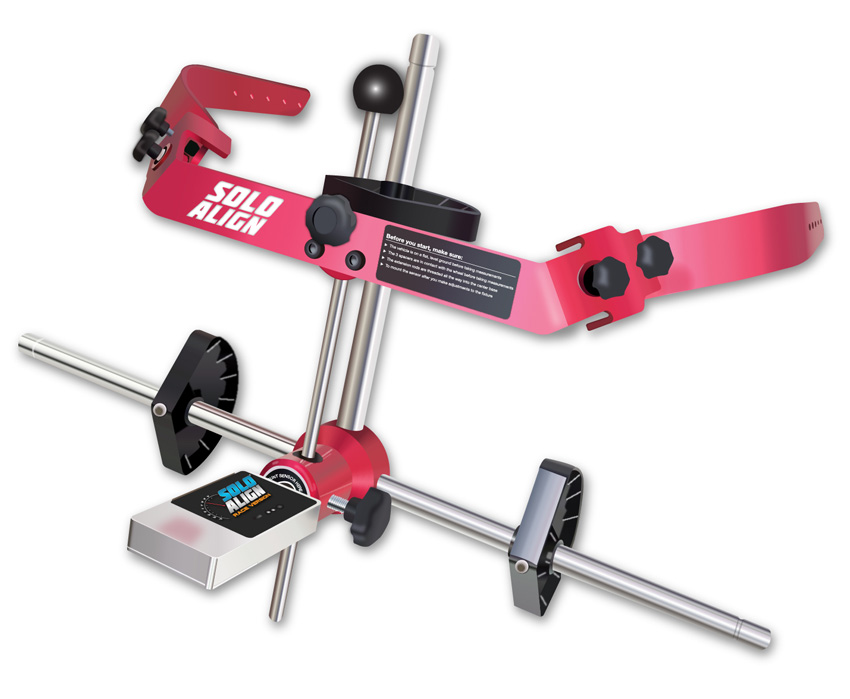

    Innovative application of digital accelerometers to help racer’s quickly determine the car’s suspension setup. The Sharp Align Angle Sensor comes complete with a fixture that works on both steel or aluminum wheels.

  • Measures steering, caster and camber angles with easy viewing on your smart phone/tablets.
  • No turn plates needed to find the caster angle.
  • Uses AAA Alkaline or rechargeable batteries.
  • Display steering angle in real time

Instruction Manual View Brochure

WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Displays steering angle in real time
  • Interactive on-screen instructions guide you through the process
  • Get measurements in minutes
  • Bluetooth automatically connects when Sharp Align app is open
  • Detailed reports saved
  • Easy to compare data in list view
  • Add photos and notes to each report

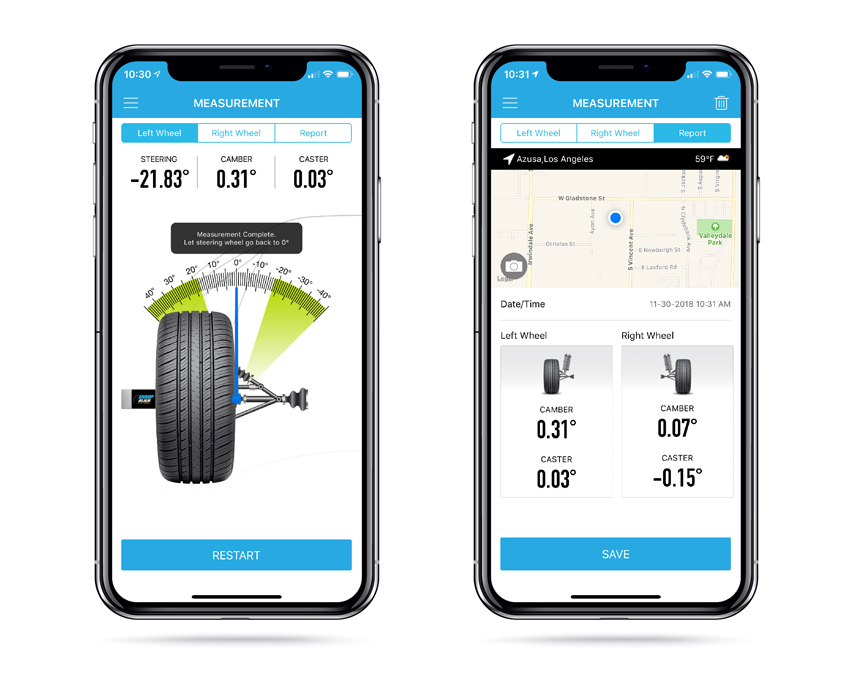

  • Live camber reading screen

Steering Angle

Minimum Steering ±18°
Accuracy ±1.5° , S.A. <45°

Camber

Range ±25°
Resolution 0.1°<45°
Accuracy ±0.2°

Caster

Range ±25°
Resolution 0.1°<45°
Accuracy ±1.5°

Battery

Battery Type AAA x2 Chargeable
Consumption 123mW (operation)

Dimensions

Sensor Dimensions 4.33” x 2.48” x .78”
Caster Camber Angle Sensor

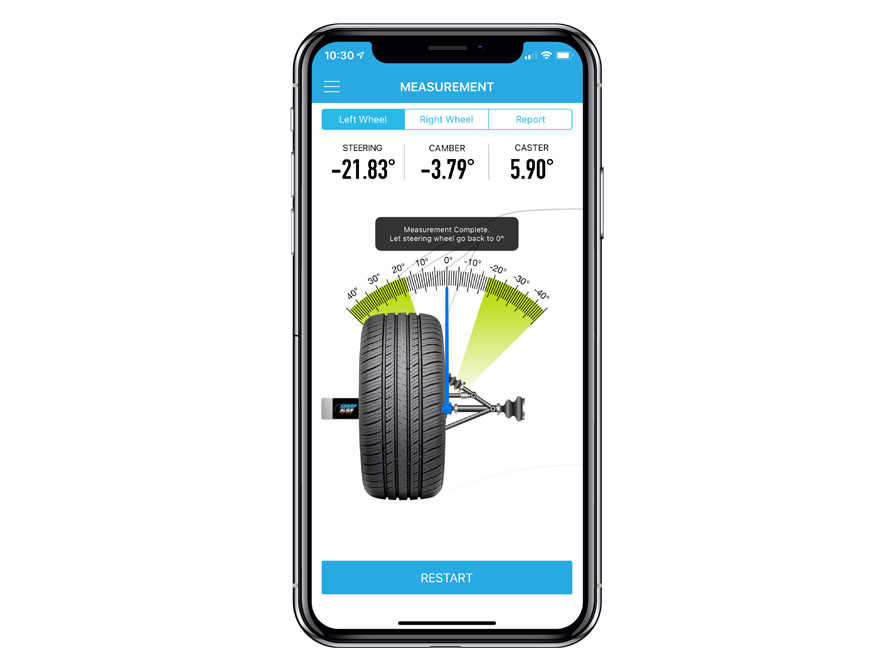

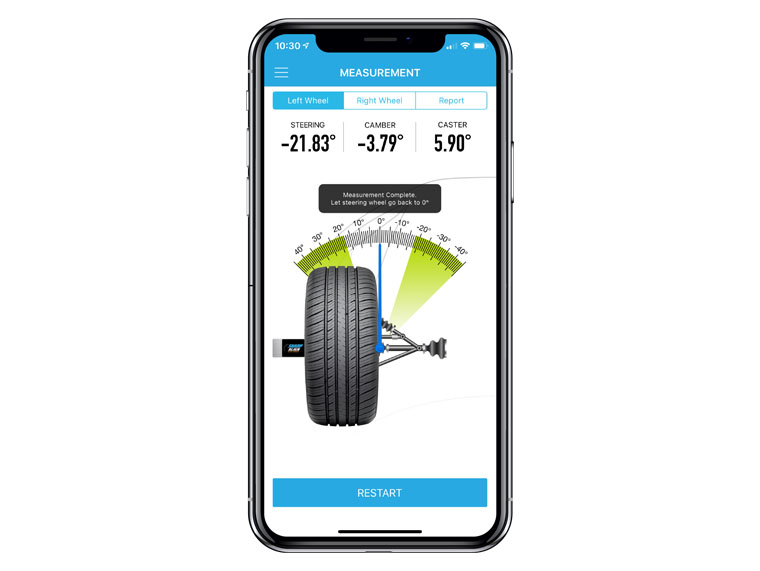

Measurement

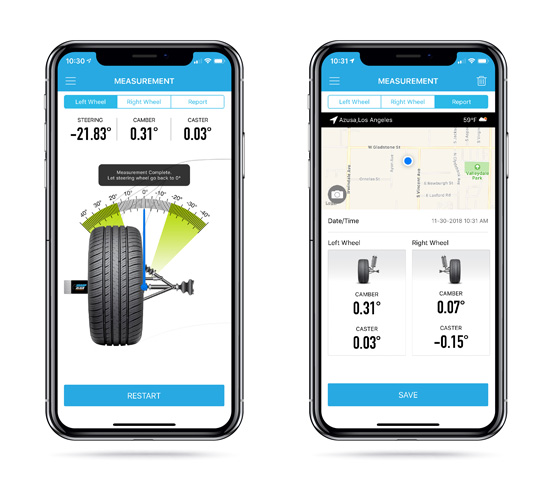

With the Solo Align Sensor attached to your wheel, you can get a caster and camber measurement in minutes. An easy on-screen guide will ask you to turn the wheel left, then right on both front wheels. This will then generate a report instantly to view the results.

  • Displays steering angle in real time
  • Easy on-screen instructions guide you through the process
  • Get measurements in minutes
  • Bluetooth automatically connects when app is open

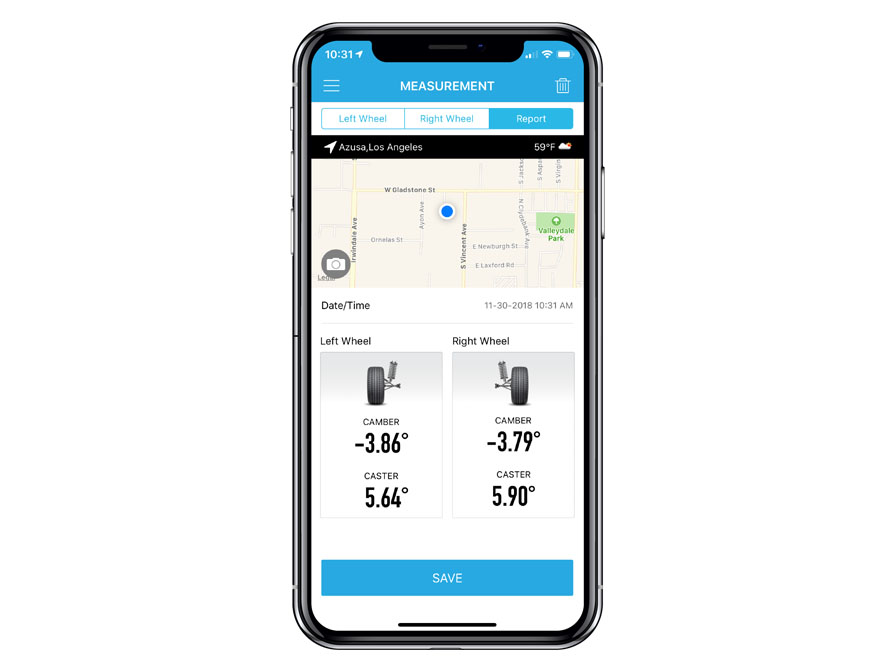

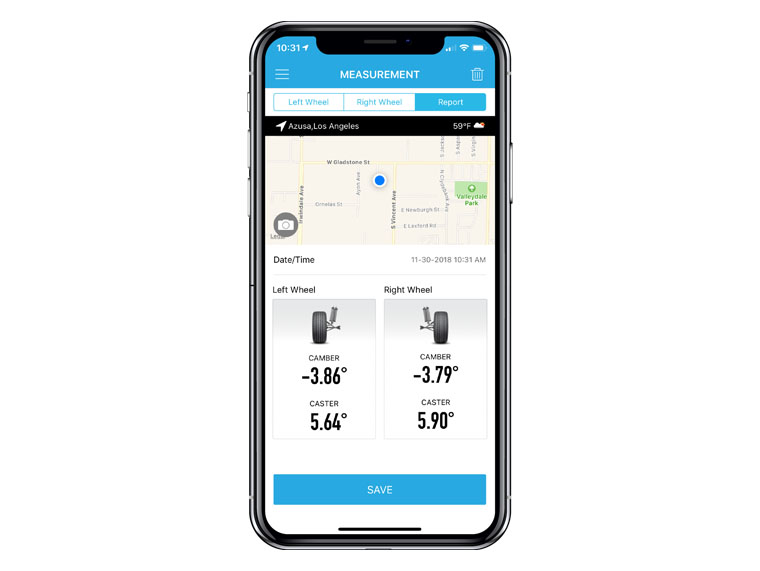

Report

With the Sharp Align Sensor attached to your wheel, you can get a caster and camber measurement in minutes. An easy on-screen guide will ask you to turn the wheel left, then right on both front wheels. This will then generate a report instantly to view the results.

  • Displays steering angle in real time
  • Easy on-screen instructions guide you through the process
  • Get measurements in minutes
  • Bluetooth automatically connects when app is open
