Hydraulic Tools & Equipment

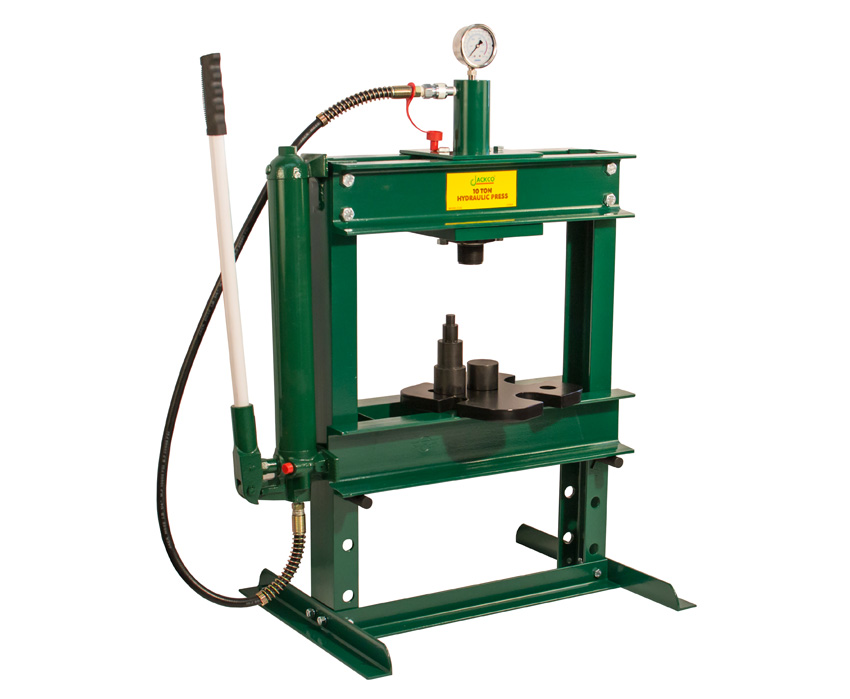

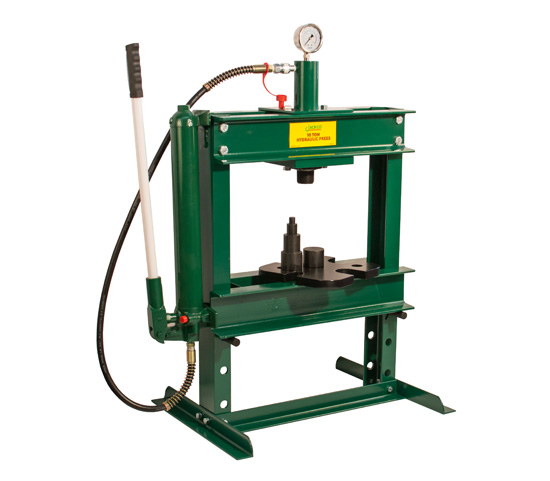

10 Ton Shop Press (Bench Top)

Model 510S

The power of hydraulic pressure in a compact design. This manual powered press is perfect for any home or hobby shop.

Instruction Manual Brochure

WARNING - Cancer and Reproductive Harm - www.P65Warnings.ca.gov

  • Strong heavy duty channel steel frame
  • Hand pump can be either hung by the frame simply placed on the bench.

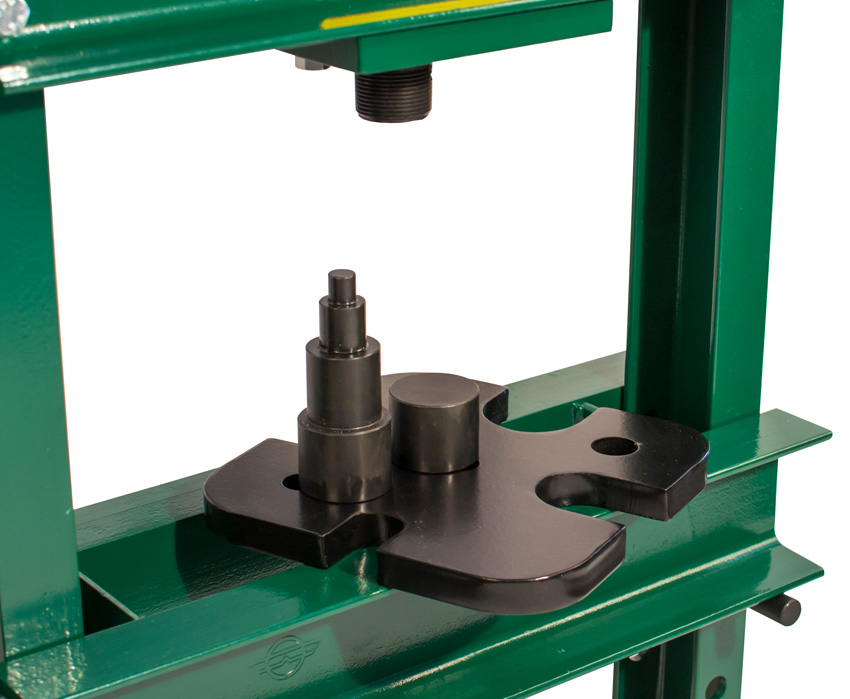

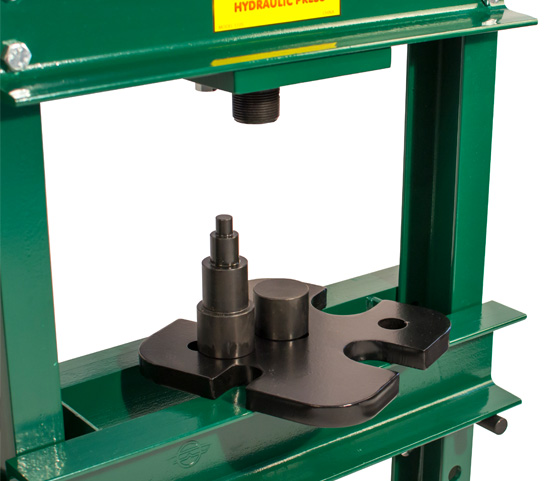

  • Two nose pieces are included for various applications.
  • Top mounted stainless steel liquid filled pressure gauge
  • 10 ton capacity
Cylinder Type Single Acting
Max Press. Capacity 10 Ton
Ram Diameter 1.5"
Ram Stroke 6"
Travel Per Stroke 1/8" approx.
Width Between Uprights 16-3/4"
Width Between Channels 3"
Max. Ram to Table 16"
Overall Height 36"
Weight 132 lbs.
